XRE6869SR Ball Bearing Turbocharger
X3CR / No Turbine Housing, Super Core Only
$2,495.00
Sale price
$2,495.00
Regular price
Skip to product information
XRE6869SR Ball Bearing Turbocharger
$2,495.00
Sale price
$2,495.00
Regular price
With the brand new Xona Rotor HTE aero, optimized for high pressure ratios and extreme shaft speeds!
Component Details
- Reverse Rotation
- Compressor wheel - 67.9mm Inducer / 88.4mm Exducer.
- Turbine Outlet - 69mm.
- 700-1050HP Applications.
- Variable preload angular contact bearings.
- Twin gas ring seals at the compressor and turbine.
- High strength, lightweight stainless steel center housing.
- Full hydraulic damping of the rotating assembly.
- Integrated oil contaminate filter.
- M62 race material allows higher temperature operation.
- Metallic bearing cages.
Product Information
The revolutionary UHF™ aero XR69SR turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.
The XRE6869SR is ideal for 68mm compressor inducer limited class racing. This turbo uses the largest compressor wheel allowed, which is paired to the ground breaking 69mm UHF turbine wheel that outflows the competitor's much larger turbine wheels. By having a smaller turbine wheel, rotating mass is significantly reduced which results in greater response and overall improved drivability. All of the flow, none of the lag.

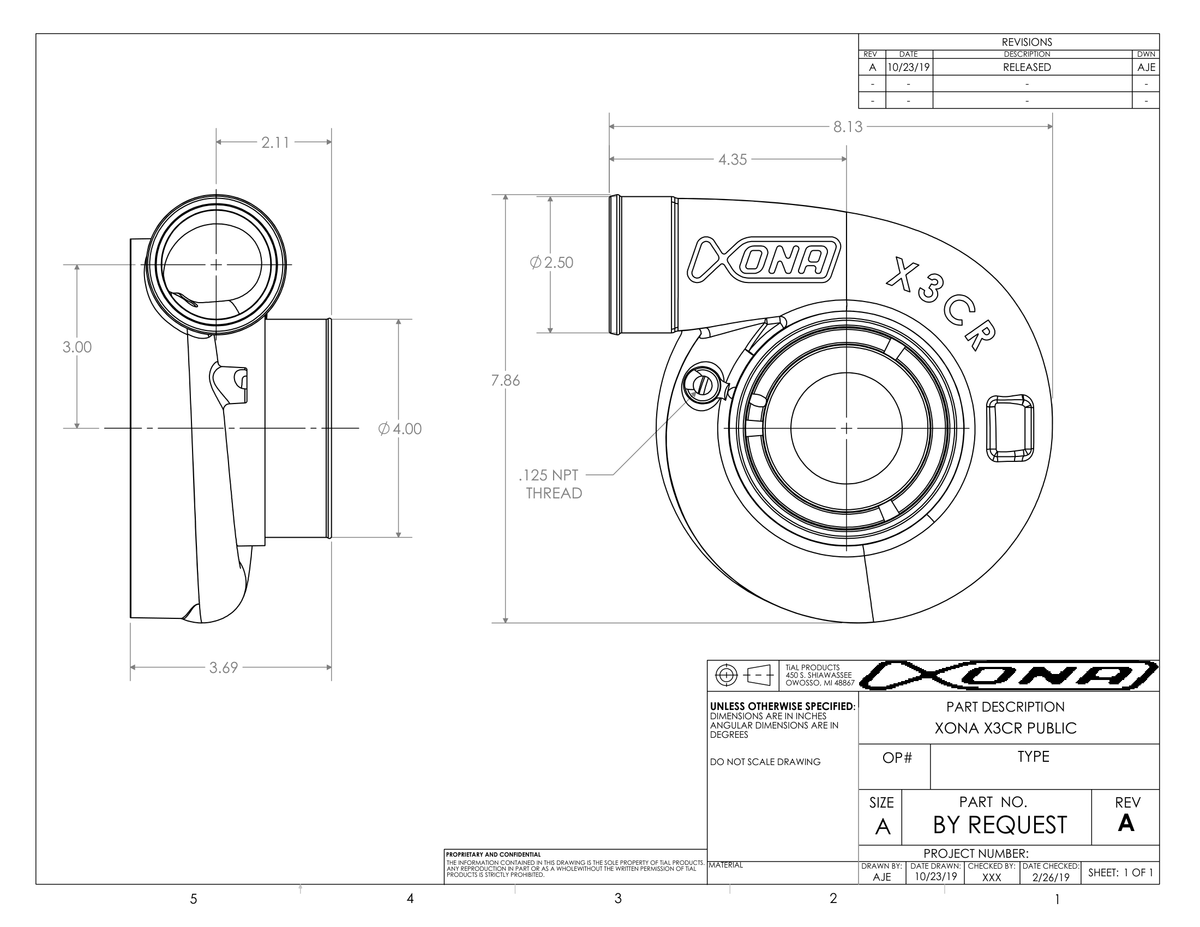

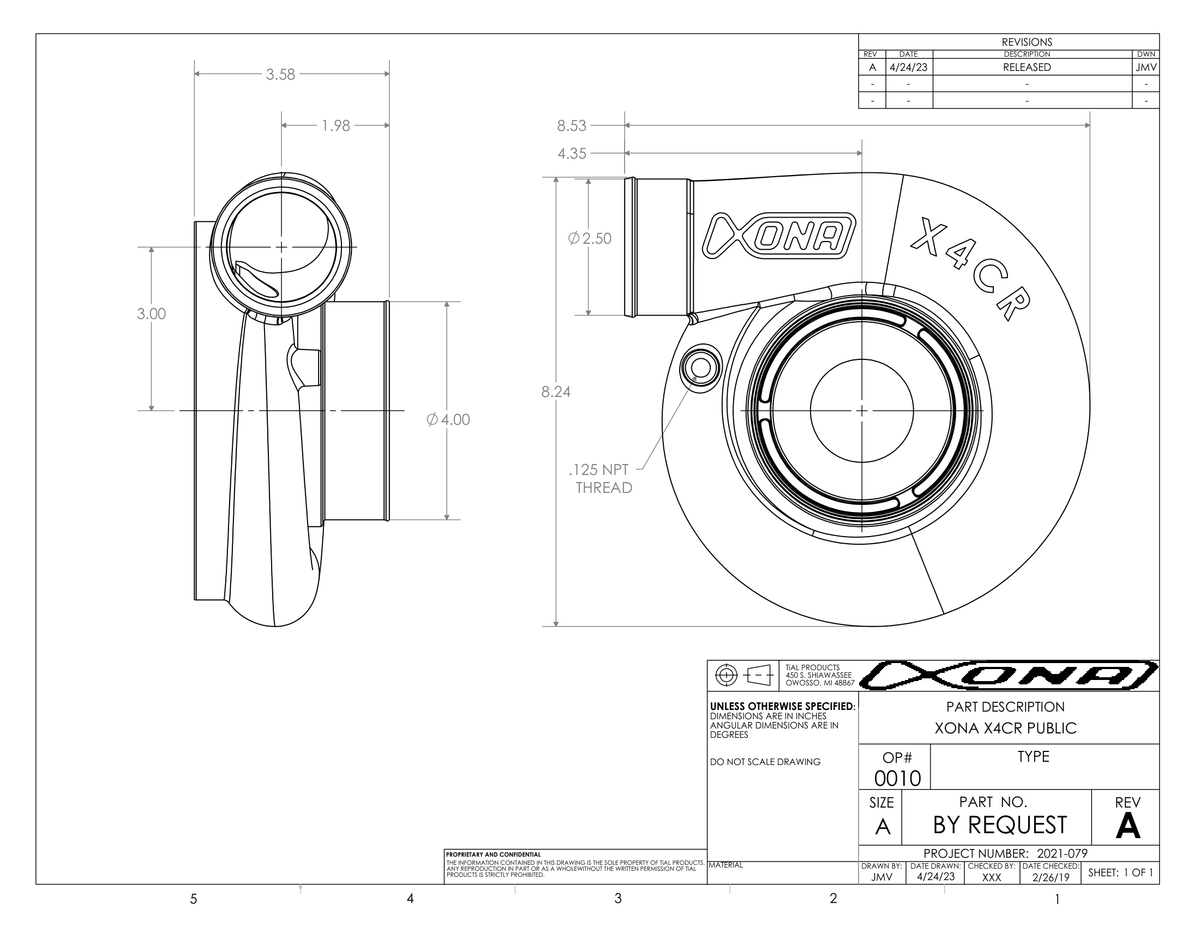

This turbocharger is available in either an X3CR or X4CR cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
