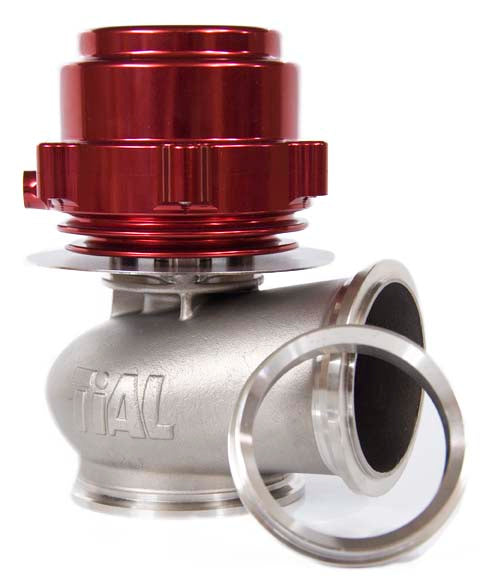

TiALSport V60 Wastegate

DUE TO THE CUSTOM-BUILT NATURE OF OUR WASTEGATES, LEAD TIMES MAY VARY.

The V60 is the largest, highest-flowing wastegate we offer, and is legendary within the world of Motorsport for the ability to precisely control boost pressure and turbine flow under the most demanding conditions.

Technical Specifications:

- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.

- High temperature silicone reinforced actuator diaphragm.

- Stainless Steel actuator spring gives consistent pressure at high temperature.

- Stainless Steel is used for the valve seat and valve bushing.

- All Stainless Steel hardware.

- Mating weld flanges are 304L.

- M10 air signal ports for easy install.

Included in the package:

- V60 wastegate assembly

- SS Band V-clamps and flanges (Optional legacy billet clamps are available upon request at an additional charge)

- All air fittings, CNC machined in-house, from stainless steel and aluminum
