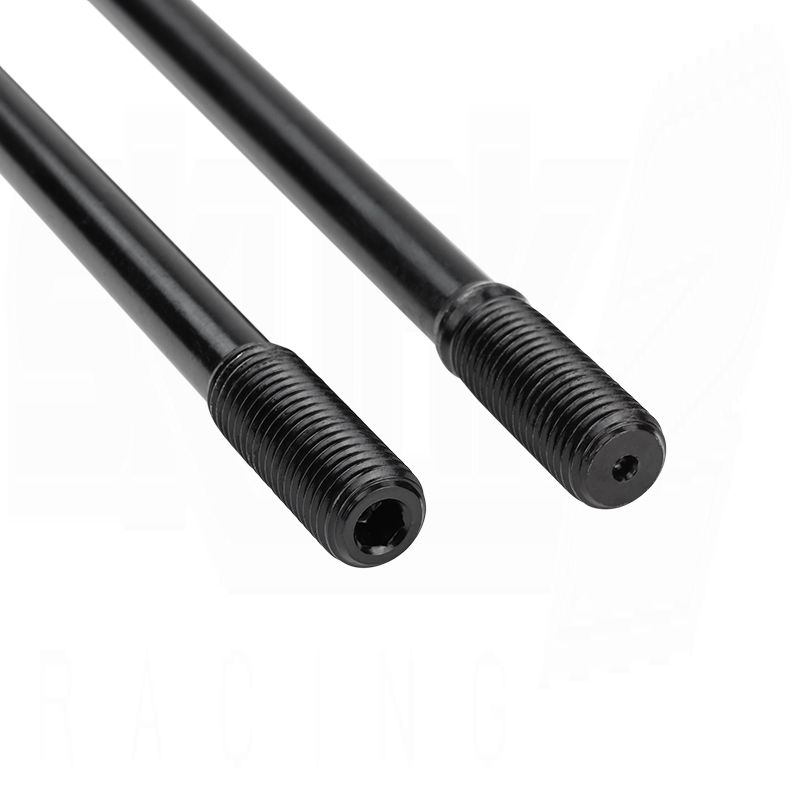

Skunk2 Head Studs - Pro Series - Honda - L15B7

Skunk2 Pro Series Head Studs for the Honda L15B7 engine.

Specifications:

5/16" (8.2 mm) Diameter
Heat Treated 4140 Alloy Steel
190,000 PSI

Skunk2 Pro Series Head Studs for the Honda L15B7 engine are manufactured from a premium grade 4140 Alloy Steel that yields a tensile strength of 190,000 PSI!

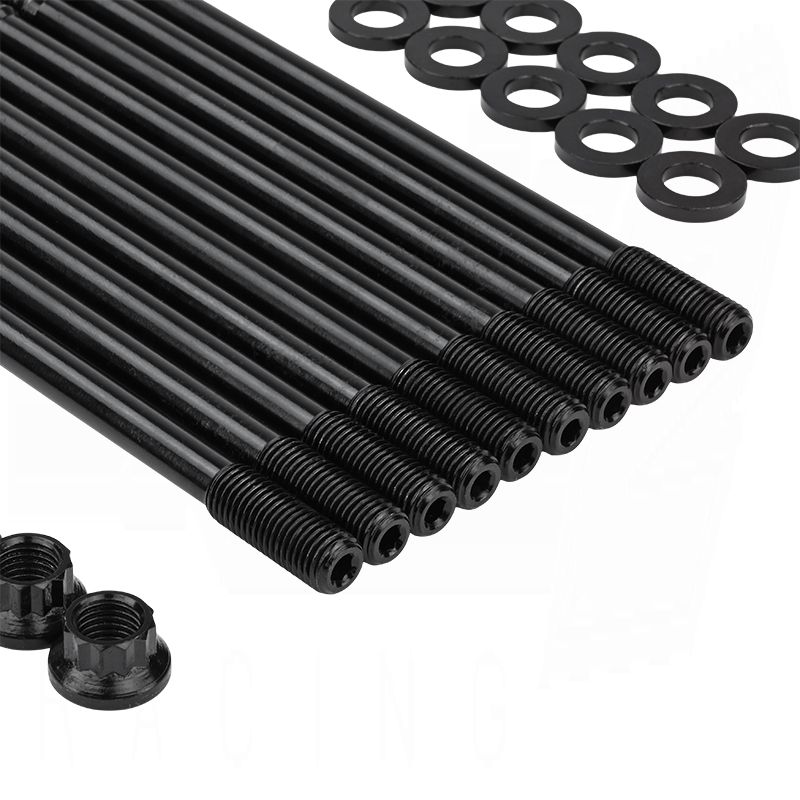

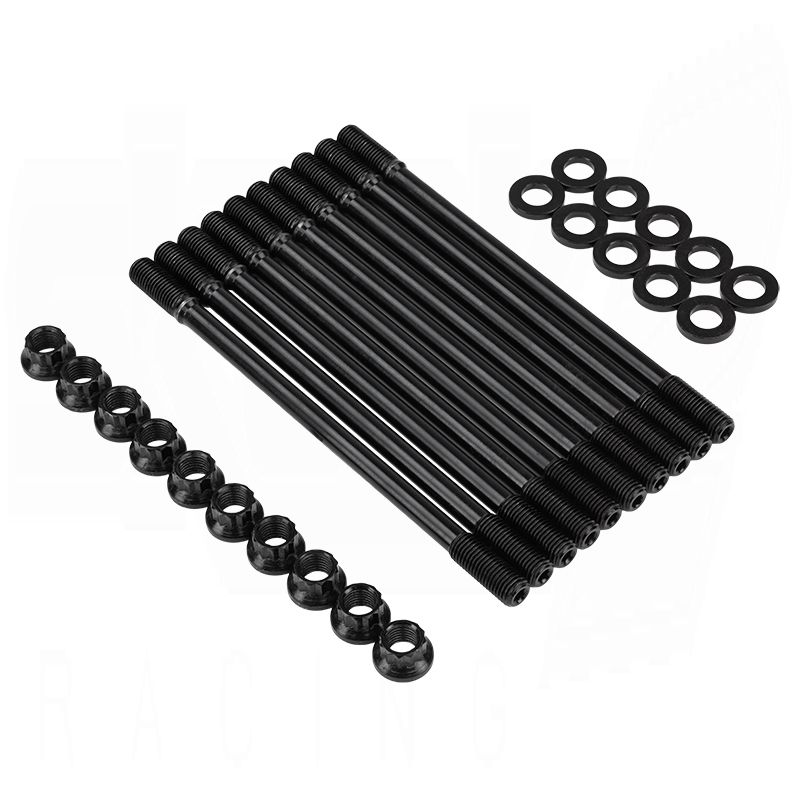

Pro Series Head Studs are cold forged for the best material strength, heat-treated, and then thread rolled, increasing the stud and thread's strength and fatigue resistance. Skunk2 Pro Series Head Studs also feature a straight pointed section at one end that is reduced in diameter just below the first threads, which allows the studs to completely bottom out in the block and preload the fastener in the block. The hardware in these head stud kits includes forged 12-point nuts and hardened parallel ground washers that even load distribution for accurate torque readings.

Features:

• Hex Broached for Easy Install
• Premium Grade 4140 Alloy Steel
• Cold-Forged & Heat Treated
• 190,000 PSI Tensile Strength
• Superior Rolled Threads
• Black Oxide Coated for Corrosion Resistance
• Dog-Point for Complete Seating & Pre-Loading

Specifications:

5/16" (8.2 mm) Diameter
Heat Treated 4140 Alloy Steel
190,000 PSI

Manufacturer reference: Skunk2 Racing
